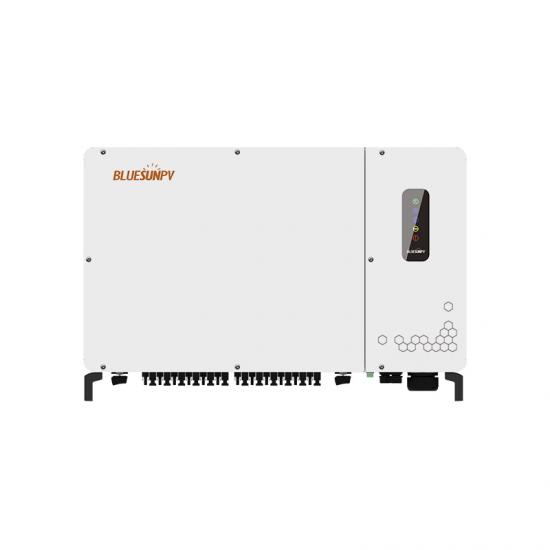

Bluesun 100KW Solar Power Inverter Grid Tie Inverter For PV Power Plants
Model:
BSM100K-BType:
PV String InvertersMax.Power:
100KWOutput Voltage:
400VCertificate:
CE/TUV/EN50549Lead Time:
15 DaysPayment:
T/T, L/C,Western UnionWarranty:
5 Years (10 Years Option)Product Description
1.High Efficiency
*Max. DC voltage 1100V. *Max. efficiency 99.03%.
*High precision & intelligent string detection.
2.Reliable
*Built-in AC and DC SPD protection module and provide full range of lightning protection.
*Smart air cooling. *Night PID module. *Compatible with 182/210 PV panels
3.Friendly
*100Pn under 45℃ Active and reactive power regulation.
*Support mobile phone APP and check the status information of status.
|
Technical Parameters |
|||||||
|
Model |
BSM6K-B |
BSM10K-B |
BSM15K-B |
BSM30K-B |
BSM50K-B |
BSM100K-B |
|
|
DC Input |
Max. DC Voltage |
550V |
1100V |
||||
|
Starting Voltage |
140V |
200V |
|||||
|
MPPT Voltage Range |
90-500V |
200V-1000V
|
|||||
|
MPPT Range Full Load |
240-480V |
370V-850V |
450V-850V |
425V-850V |
450V-850V |
550V-850V |
|
|
Max. Input Current of Each MPPT |
13A/13A |
20A / 20A |
26A /20A |
40A /40A |
60A /60A |
65A / 65A / 65A / 65A |
|
|
Max. short-circuit current |
19A/19A |
30A / 30A |
39A / 30A |
60A /60A |
90A /90A |
100A / 100A / 100A / 100A |
|
|
Number of DC Inputs |
1 /1 |
1 /1 |
2 /1 |
3 /3 |
5 /4 |
5 / 5 / 5 /5 |
|
|
MPPT Number |
2 |
2 |
2 |
|
2 |
4 |
|
|
AC Output |
Rated Output Power |
6kW |
10kW |
15kW |
30kW |
50kW |
100kW |
|
Max. Active Power (cosθ=1) |
6.6kW |
11kW |
16.5kW |
33kW |
55kW |
110kW |
|
|
Rated Output Voltage |
220V/230V(Mono Phase) |
400V (Three Phase) (380V optional) |
|||||
|
Operating Voltage Range |
172.5V-276V |
300V-520V |
|||||
|
Rated Output Current |
/ |
14.5A |
21.7A |
43.5A |
72.2A |
144A |
|
|
Max. Output Current |
30A |
16.0A |
23.9A |
47.6A |
79.4A |
1583.8A |
|
|
Rated Grid Frequency |
50Hz / 60Hz |
50Hz / 60Hz |
|||||
|
Power Factor |
0.8 (Leading) ~ 0.8 (Lagging) |
||||||
|
THD |
<3% |
<3% |
<3% |
<3% |
<3% |
<3% |
|
|
System Parameters |
Max.Efficiency |
98.55% |
98.60% |
98.61% |
99.00% |
99.03% |
99.00% |
|
European Effciency |
98.00% |
98.40% |
98.40% |
98.80% |
98.51% |
98.52% |
|
|
AC/DC SPD |
Support |
||||||
|
Insulation Impedance Detection |
Support |
||||||
|
Residual Leakage Current Detection |
Support |
||||||
|
PV String Fault Detection |
Support |
||||||
|
Output Overcurrent Protection |
Support |
||||||
|
Protection Degree |
IP65 |
||||||
|
Operating Temperature Range |
-40℃~ +60℃ |
||||||
|
Cooling System |
Natural Cooling |
||||||
|
Standby Power Consumption |
<1W |
<1W |
<1W |
<1W |
<1W |
<5W |
|
|
Topology Structure |
Transformerless |
||||||
|
Operating Altitude |
4000m (Derating above 3000m) |
5000m (Derating above 3000m) |
|||||
|
Display |
LED Indicator + APP |
||||||
|
Communication |
WiFi / GPRS / 4G |
RS485 / WiFi / GPRS / 4G |
|||||
|
Mechanical Parameters |
Dimensions (W*H*D) |
325*380*177mm |
380*400*247mm |
380*400*247mm |
380*450*247mm |
520*520*265mm |
800*680*330mm |
|
Weight |
≤14kg |
≤22kg |
≤22kg |
≤35kg |
≤44kg |
≤89kg |
|
